Do you fabricate a product that requires accurate and complex measurements on site?

For example:

Introducing PhotoModeler’s New Letter Sheet Target System 2
Introducing PhotoModeler’s New Letter Sheet Target System 3
Introducing PhotoModeler’s New Letter Sheet Target System 4
Introducing PhotoModeler’s New Letter Sheet Target System 5

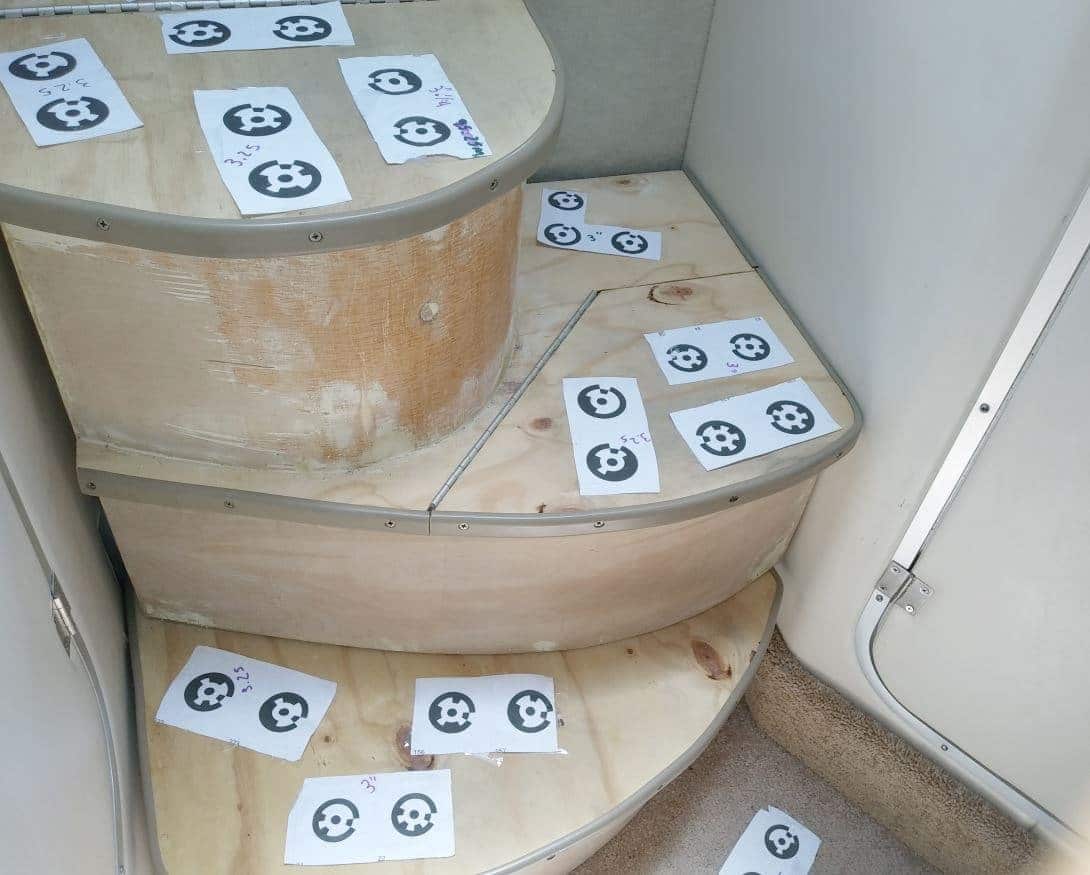

  • Boat decks and covers
  • 2D templates and patterns
  • Kitchen and bath countertops
  • Pool covers and decks
  • Kitchen and bath countertops

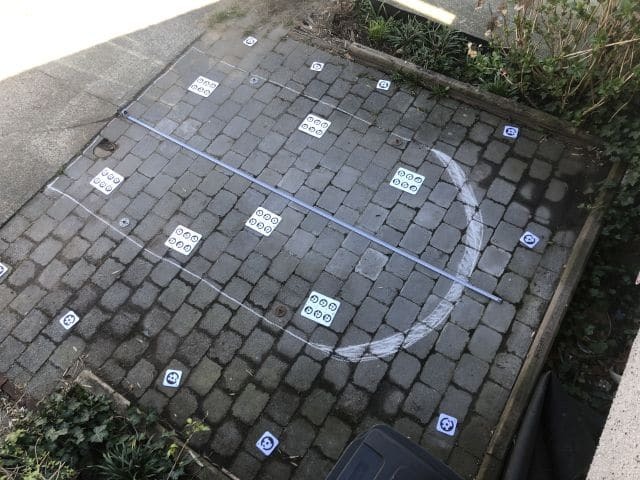

  • Flooring, patios, stairs, pavers
  • Glazing or surface measurement
Introducing PhotoModeler’s New Letter Sheet Target System 6
Introducing PhotoModeler’s New Letter Sheet Target System 7
Introducing PhotoModeler’s New Letter Sheet Target System 8
Introducing PhotoModeler’s New Letter Sheet Target System 9

Letter Sheet Target System Introduction Video

Click here to view a larger version with captions.


Unless the shapes are simple, like rectangles, these types of projects usually can’t be measured with a tape measure and sent off for fabrication.

Sometimes the shapes can be templated with cardboard or plastic, or sometimes they can be digitally traced, though awkwardly, using arm, string, and tablet-based systems.

The Better Way

Have you ever wanted to trace a large and/or complex shape on a photo, and digitally send that scaled and dimensionally accurate shape to a printer or cutter for production?

Have you ever thought you could do that with a camera and software? …even though photos have to be handled correctly to get rid of all distortions for accurate results?

In a earlier blog post we talked about Presets and how they can help your Coded Target projects. In this post we talk about a product that fits well with Presets and answers the above questions - called PhotoModeler Letter Sheets.


With PhotoModeler and the new Letter Sheet Coded Target detection system you can do these fabrication projects in a few easy steps:

1.

Lay down some targets.

2.

Take some photos.

3.

Import photos and launch automated project.

4.

Trace the shape(s).

5.

Export the model.

Use the target system when you need a scaled, digital model for fabrication of simple or complex shapes of various sizes from on-site or in-factory photos - most advantageous for large shapes or patterns on relatively flat surfaces.


Introducing PhotoModeler’s New Letter Sheet Target System 10

How it works

In order to trace a shape in a photo, PhotoModeler needs to define ‘planes’ in the 3D space (conceptually like the cardboard or plastic templates that are sometimes used to trace a shape).  Targets in the scene are used to define these planes on which the shapes can be traced.  Not all shapes that are to be traced in a project need to be on one plane, as multiple planes can be defined in a 3D project at various levels.

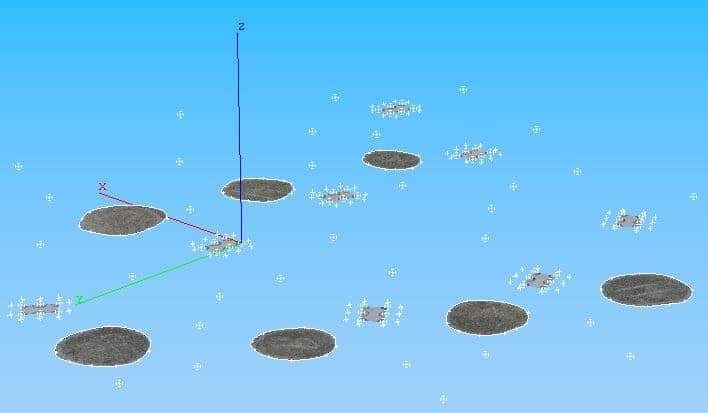

The Letter Sheet coded target patterns of circular targets are automatically detected in multiple photos, their 3D positions are automatically calculated, planes are automatically defined, and the real-world coordinate system and scale are automatically set up.


Introducing PhotoModeler’s New Letter Sheet Target System 11

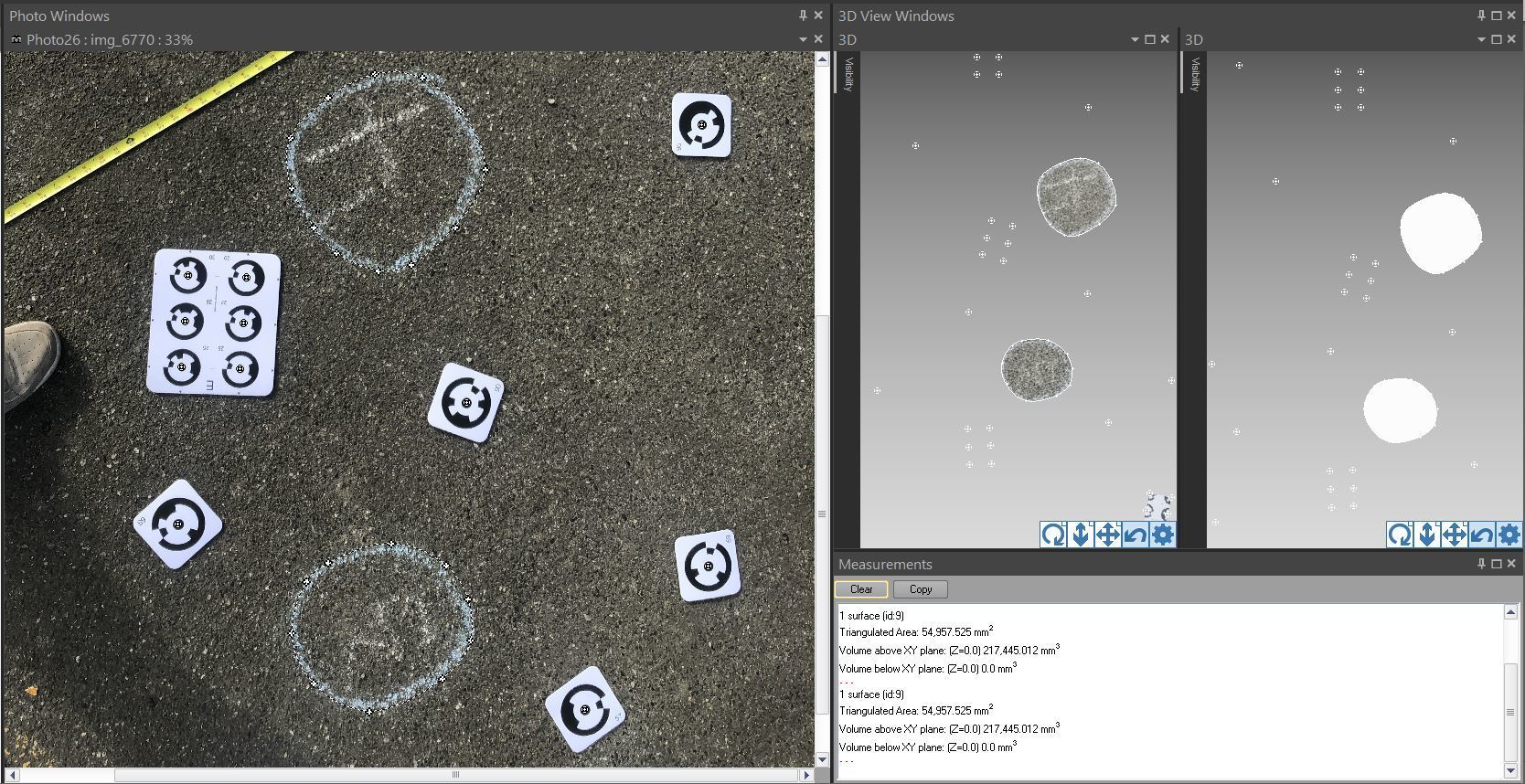

All you do is trace the shape(s) of interest and export!  It is very efficient and PhotoModeler takes care of all the complex mathematics for you!

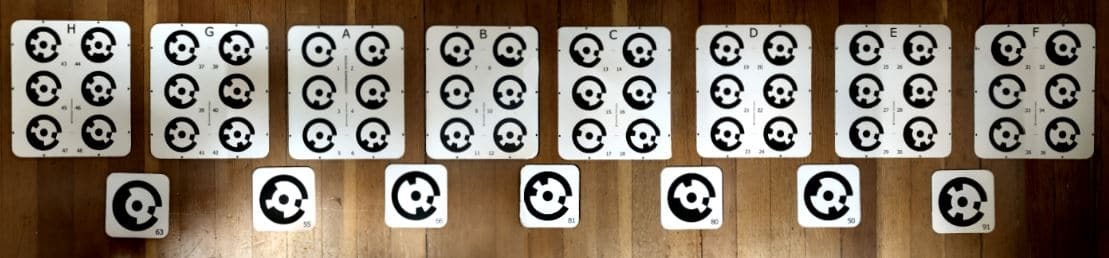

The Letter Sheet System Targets for Different Applications

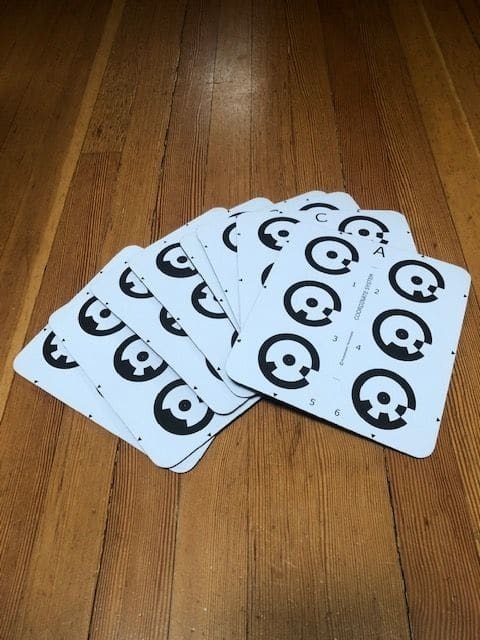

Letter Sheet Targets

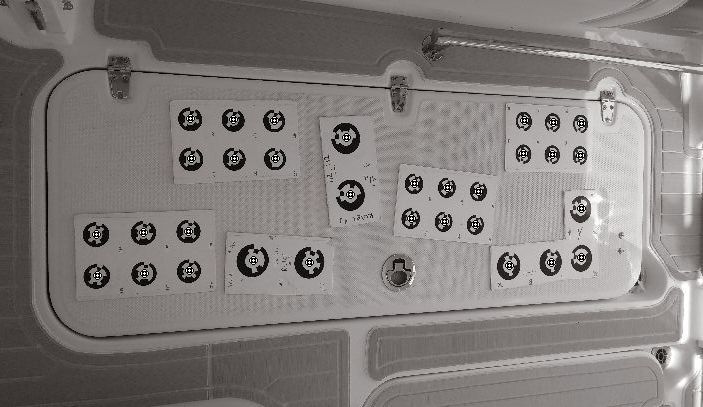

The Letter Sheets have six (6) coded targets each, and are approximately 190mm x 215mm (7.5” x 8.5”) – about the size of a mouse pad.

Introducing PhotoModeler’s New Letter Sheet Target System 12
  • Scales - One of the key benefits of the Letter Sheet System is that your model is scaled properly in a real-world coordinate system. A scaled model will be dimensionally accurate, while an unscaled model, though looking correct, may be the wrong absolute size. Think of a toy boat model compared to a life-size model – both look right, but only the life-size model is dimensionally accurate!
  • Planes - Letter Sheet targets are also used to define the plane surfaces on which shapes of interest can be traced. In PhotoModeler, the planes are important for the Surface Draw tools used for tracing.
  • Edges and Lines - If you need to define a series of points along a straight edge, those points can be automatically defined too! Letter Sheets have small arrows around the perimeter at locations where offset points are defined, which are useful when aligning a sheet along the edge of a feature.
  • Coordinate system – the direction and axes of the coordinate system are also set automatically from the ‘A’ sheet or the “Coordinate System Sheet”.

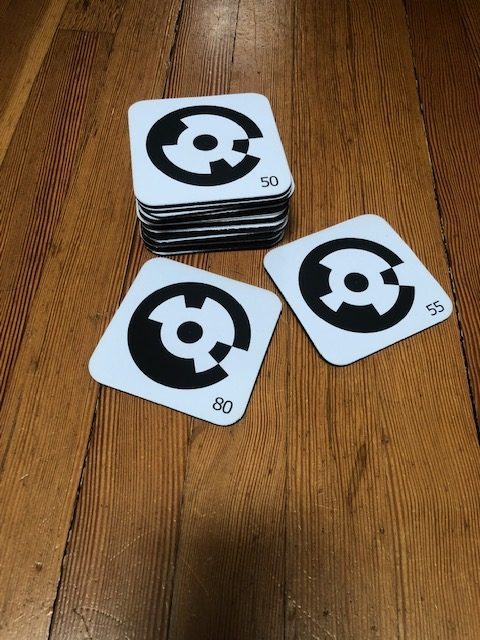

Individual Targets

The individual targets found in the Letter Sheet System are about 100mm x 100mm (4” x 4”) – about the size of a coaster.

  • Individual targets can be spread out in the scene and help ‘tie’ together parts of the model, especially useful for a model spread over a large area.
Introducing PhotoModeler’s New Letter Sheet Target System 13

How to Use the Letter Sheet System

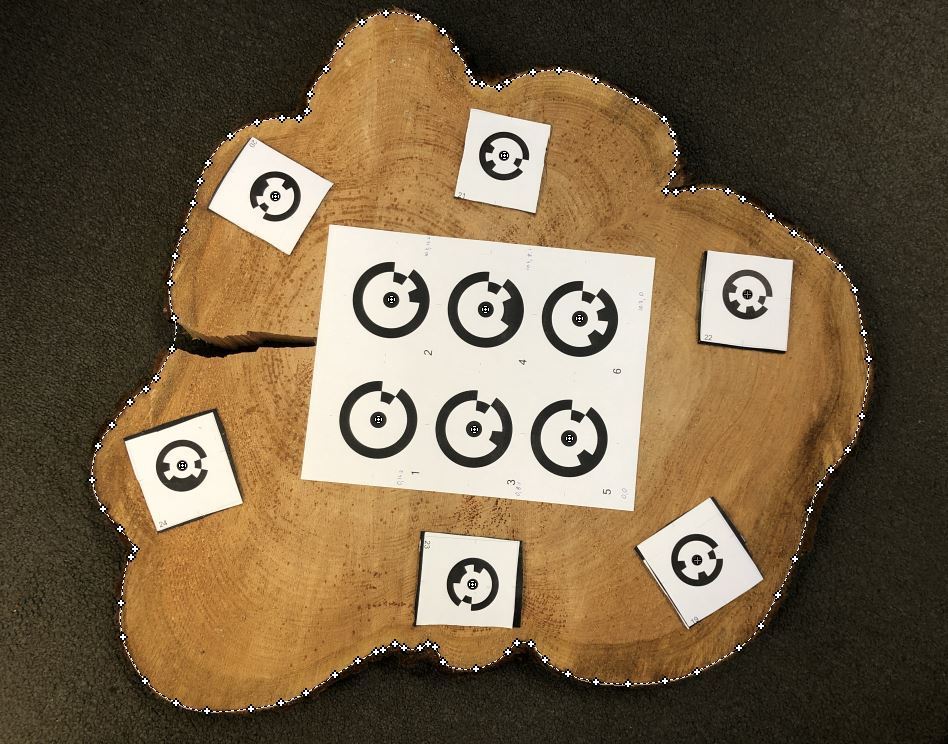

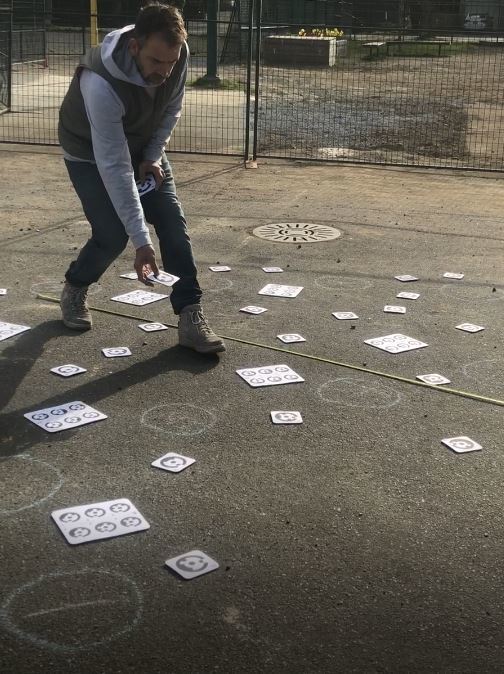

01 Spread the targets throughout the scene:

Place Letter Sheets on flat areas in specific areas of interest, and individual targets throughout the scene (including areas not necessarily measured but visible in photos between Letter Sheets). It is important the target count is high enough so there are enough targets in each photo (aim for 10+ targets in each photo – so two Letter Sheets or a Letter Sheet and a few individual targets in each photo.

Introducing PhotoModeler’s New Letter Sheet Target System 14

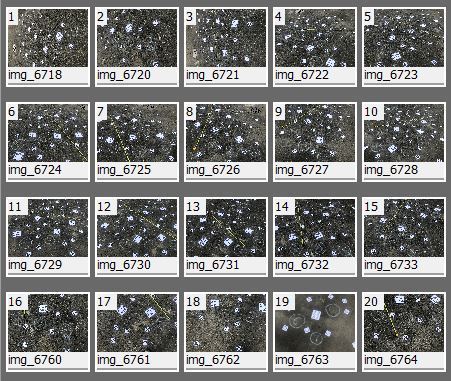

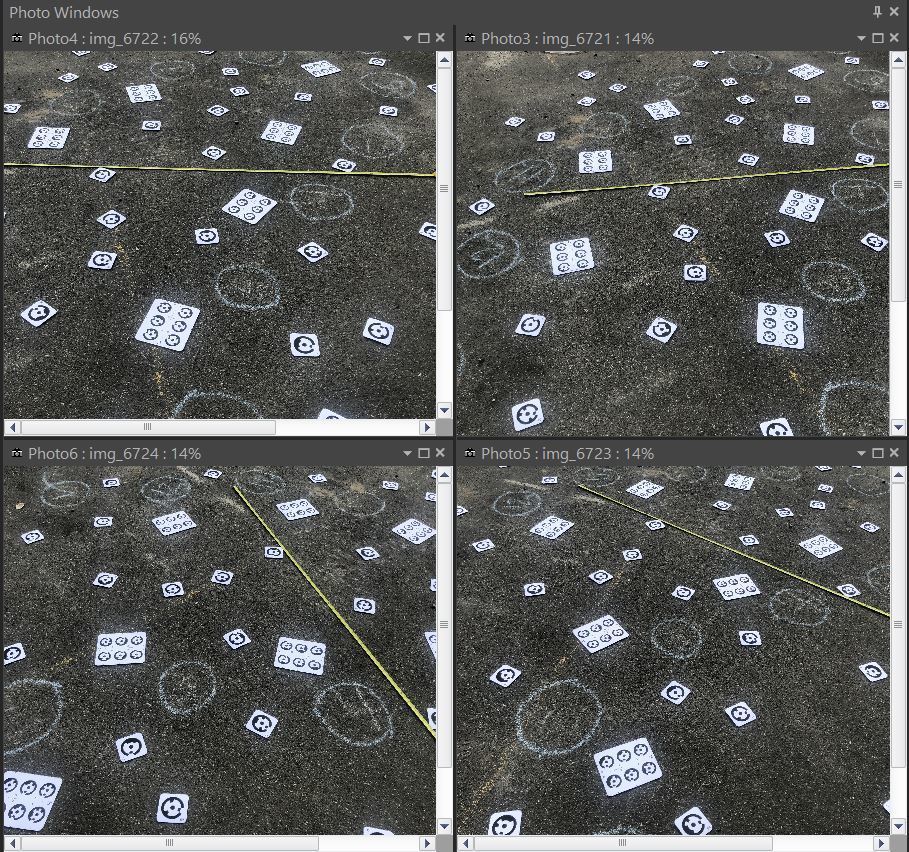

02 Take overlapping photos:

Ensure that there is enough overlap between photos and that 10 or more targets are visible in each photo. You want photos to be ‘connected’ by several targets.

Introducing PhotoModeler’s New Letter Sheet Target System 15

Generally, place more targets than you think, and take more photos than you think. You don’t necessarily need to use all the photos in the final project.

03 Import photos and launch project:

Launch a ‘Letter Sheet Automated Target Project’, import the photos, and target points are detected, the coordinate system gets set up, and optionally planes, lines and offset points are formed.

Introducing PhotoModeler’s New Letter Sheet Target System 16
Introducing PhotoModeler’s New Letter Sheet Target System 17

04 Trace the shape(s):

Trace the shapes of interest in one or more photos using PhotoModeler's Surface Draw tools.

These can be deck textured regions, counter-top edges, pool edges, etc.

Introducing PhotoModeler’s New Letter Sheet Target System 18

05 Export the model:

Once the shapes have been traced, the model can be exported from PhotoModeler, and sent to your CAD package, cutter application, or printer etc.


Acquiring Letter Sheet Target Sets

PhotoModeler Technologies has the Letter Sheet system available in three styles to fit your requirements:

  • Heavy, Rubber-Backed - good for outside, in windy and slippery conditions. I.e. boat decks.
  • Light, Stiff, Card-Back - good for inside, and applications where targets are cantilevered. Ie kitchens.
  • Self-Printed - print them yourself on paper, or get them manufactured to your requirements. If on paper, use tape to hold them down. The most flexible and least costly option!
