Fabrication and Manufacturing Applications with Photogrammetry
- Do you manufacture a fitted or custom product?
- Do you use CAD and perhaps CNC to cut and fabricate these products?
- Do you want to use a camera for an easier and more cost-effective way of measuring?
PhotoModeler can help you!
Custom fitting, retrofits, and remodeling often require measurements and drawings of a remote location or a client site so that a part can be manufactured or fabricated to fit. Photogrammetry creates measurements and diagrams using a normal camera. Instead of having a complex and expensive device for field measurements for your retrofit or remodeling business, you only need a camera and a tape measure.
In addition, you might use templates in paper, plastic, or cardboard that need to be digitized for use in CAD/CNC. PhotoModeler can help you do this as well with a camera!
Benefits and Advantages
Compared to most other accurate field measurement technologies, photogrammetry (or camera-based measurement) has these major advantages:
- Little to no specialized equipment
- Lower cost
- Faster in-field measurement
Some example applications for photogrammetric measurement in manufacturing are:
- Measuring boats for manufacture and install of decking, covers, biminis, and upholstery.
- Measuring kitchens & baths for manufacture and install of countertops and cabinets.
- Measuring stairs for manufacture and install of stairlifts and railings.
- Measure pools for covers or new liners.
- Measure for custom glazing.
- Measure templates and outlines of industrial gaskets.
What these applications have in common is the need to obtain accurate measurements at a remote job site and return those measurements to the factory for further CAD work and then manufacturing the objects and parts.
- A bit more detail is shown in the Easier Measurement for Retrofit Manufacturing blog post.
- A pdf brochure on camera use in fabrication.
- See also the application page: Digitize 2D Patterns and Templates with a Camera
- See also the application page: How to Measure Boat Decks without Physical Templates
Applications in Manufacturing Retrofits
There are several applications of photogrammetric measurement in retrofit work. Three of the most common ones involve stairs (for lifts and railings), kitchen refit, and boat templating. The following sections show examples of each.
There are two main applications in measuring staircases in homes and offices. The first is the retrofit of stair lifts, and the second is measuring for more complex banister/railing installation (curved staircases).
Curved staircase modeling with Coded Targets

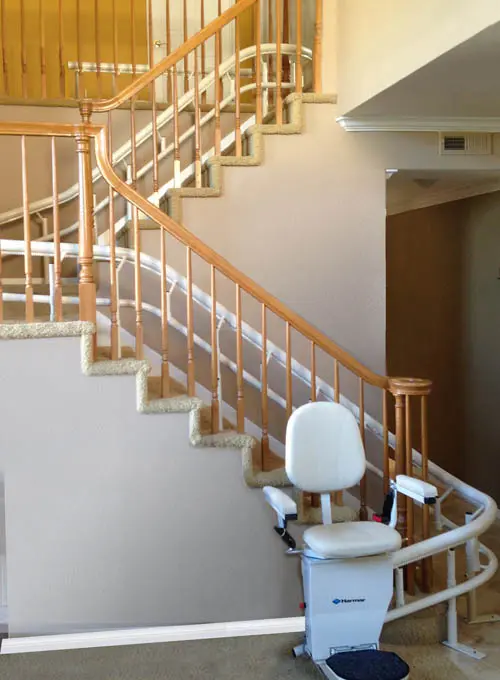

Typical complex stairlift install (courtesy Harmar)
There are several applications of measurement and modeling needed with yacht and pleasure craft retrofit. Examples are the manufacture of full or partial boat covers, biminis, windscreens, complex decking, dash and console replacement, and upholstery.
Windscreen installed after templating
There are a number of useful resources to learn more about the use of PhotoModeler in boat canvas and part creation:
- Application page: Digitize 2D Patterns and Templates with a Camera
- Application page: How to Measure Boat Decks without Physical Templates
- Photogrammetry Accelerates Creation of Marine Enclosures article.
- An article on more detailed steps on template digitizing: How to Digitize Templates and Patterns With a Camera
- A presentation by one of our customers Edward Skrzysnki of Marco Canvas on 2d template digitizing.
Kitchen / Bathroom
Kitchen and bathroom remodels, or new construction requires accurate measurements of walls shape, dimensions, and placement of existing cabinetry and outlets for complex cabinet and counter-top installs.

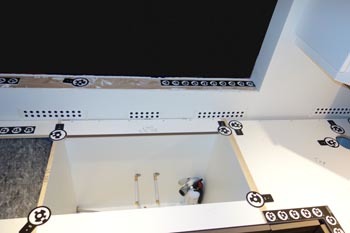

Kitchen measurement for countertop manufacture
