Measuring Small Planar Objects

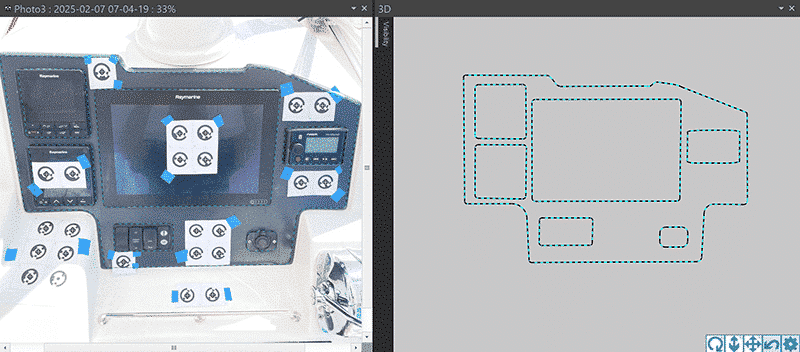

A great application of PhotoModeler is the measuring, modeling and outlining of small planar objects such as marine dash panels or industrial instrument panels. Other applications: modeling gaskets (more to measuring the equipment needing the gasket vs the gasket itself which is well-handled by 2D Template Digitizing), or small flat screens with embedded buttons such as car dash screens.

We have a set of coded targets in a configuration suited to these small planar areas. See the Small Area Target Set on the PhotoModeler Coded Target File Sets page.

If you have an application that needs accurate outlining of shapes on smaller planar surfaces (under 5′ or 1.5m across), please email us at sales@photomodeler.com to find out if PhotoModeler is a solution.
